TruViews Deep Zoom Software

This breakthrough image authoring tool turns ordinary JPG images into amazing Cylindrical (360-degree), Hemispherical and Full Spherical 3D product animations featuring click-and-drag mouse control and deep zooming from every angle






transparent png

How It Works:

Use the PhotoCapture software supplied with our products to capture a sequence of images. This sequence can be saved as a TruViews presentation and the stitching is done as part of this process.

Alternatively you can import an existing series of jpgs into TruViews to create the presentation.

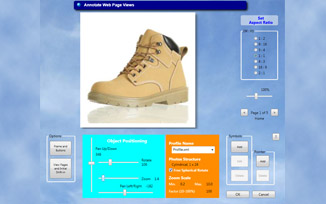

Use TruViews to create pages and tags within the presentaion to highlight product features.

The responsive presentation will resize to fit window / screen / iframe.





Three degrees of Truview


Deep Zoom 360º Cylindrical HTML. Click for example

A 360º view of a product taken from a single height using one of our 360º PhotoStudios or turntables. This is sometimes known as a single row. The images are then exported and processed with our software. The resultant image can be rotated and zoomed to view a high level of detail.

Deep Zoom Hemispherical HTML. Click for example

Uses similar techniques to the 360º Cylindrical, but takes it to another level. By photographing the product with either the PhotoStudio Multi or one of our turntables combined with a 3D PhotoArm 2000 or 3000, it is possible to take more than one row of images. This means that you can also view the product from above or to the side, effectively from anywhere in a hemisphere over the product.

Deep Zoom Spherical HTML. Click for example

The logical ultimate step - as well as being able to rotate your item to see over the top, a Spherical rotation allows you to turn it over and see the base. You can view the product from any angle, with deep zoom, to see every detail. You can then tag features of the product.





Overview


This breakthrough image authoring tool turns ordinary JPG images into amazing Cylindrical (360-degree), Hemispherical and Full Spherical 3D product animations featuring click-and-drag mouse control and deep zooming from every angle.

The output is an interactive HTML with Javascript presentation that allows tagging of images that can then be autoplayed if required.

2 products - TruViews 360º for cylindrical rotations and True Views 3D for multi-row sequences such as those taken using one of our Multi Photo Arms and turntable, producing hemispherical or spherical rotations.

TruViews is supplied as standard with our Macro PhotoStudio, LED 360 PhotoStudio, PhotoStudio Multi and PhotoArm products.





Minimum System Requirements


OS: Windows 7 / 8 / 10 (latest Service Packs) (Administrator account to install)

CPU: Intel Core™ i3 or better

RAM: 4GB

Internet connection with active email account (optional)

Min 2 USB Ports, CD/DVD ROM drive


To run on a Mac you will need an Intel based Mac and a copy of Windows running under Boot Camp, VMware or Parallels Desktop
